Device spec

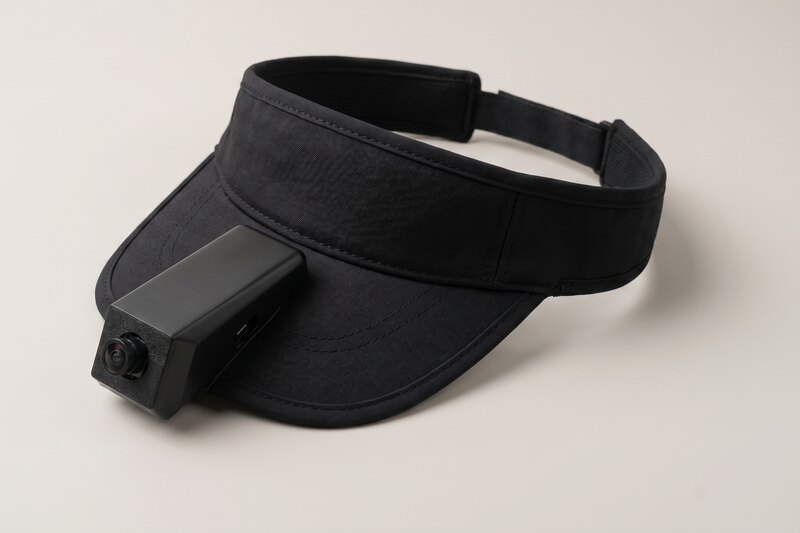

Mono-cap
Head-worn mono-camera capture rig for physical-AI workflows. Wide-FOV video, 9-axis IMU, and session metadata, manufactured for fleet-scale deployment.
Specifications
Vision
Field of view150–180° wide-FOV (lens options)
Resolution1920 × 1080
Frame rate30 fps
Camera topologyMono camera
IMU
Type9-axis (accelerometer + gyroscope + magnetometer)
Sample rate200–600 Hz
SyncHardware-synced to video
Output
StreamsH.264 video, 9-axis IMU (CSV), session metadata (YAML)
Chunking30-second chunks (mp4 + imu.csv + meta.yaml)
Session unitOne recording = one session
UploadMobile app → cloud bucket
Power & mechanical
Weight~80 g
PowerUSB-C tethered (phone or power bank)
MountHead-worn
Pricing
Sample$250 USD; shipping billed separately
Pilot25–100 devices
Production$85–100 / device at 1,000-unit MOQ
Custom rigsCapture spec → device in 2–4 weeks
